QDR-365SA

Versatile Multi-LED, Broad-Beam NDT Inspection Lamps!

QUADRAN™ 365 NDT lamps feature four ultra-hi-flux UV-A LEDs plus a convenient white light LED to quickly switch between fluorescent inspection and flaw location. For increased flexibility, a unique dual, high/low white light output control.

QUADRAN™ 365 S-Series lamps are available in three models (QDR-365SA, QDR-365MSA, and QDR-365MSBLA).

The QDR-365MSBLA and QDR-365MSA come with a Battery Pack for Mobility.

The QDR-365MSBLA is equipped with a faceplate containing integral black light filters that reduce the output of wavelengths longer than 400 nm.

ISO 3059

Where to Buy
  • Choice of three models with a maximum standard UV-A intensity of 4,500 μW/cm2 at 15 inches (38 cm)

  • Large coverage area of up to 6.5 inches (16.5 cm), with a minimum UV-A intensity of 1,200 μW/cm2

  • Low visible light emission — less than 1 foot-candle (11 lux)
  • Built-in fan keeps LEDs cool to maintain optimum light output during extended use

  • Rubber bumper with Borofloat® glass lens protects LEDs from damage

  • Rugged, modular construction allows for easy field serviceability

  • Lamp handle pin receptacle allows for easy attachment of various Spectroline® mounting accessories for in-line inspection applications (accessories sold separately)

  • Choice of standard 8 foot (2.4 m) or extra-long 20 foot (6.1 m) heavy-duty power cord with AC plug and rubber boot. Also available: Optional industrial power supply or in-line power supply with cord sets (sold separately). All power supplies available in 120V, 230V, 240V and 100V models.

  • Meet ASTM UV-A intensity and wavelength specifications for LPT and MPT

  • Certificate of Light Output for both output and wavelength measurements supplied with each lamp

  • UV-absorbing spectacles and soft carrying case included

QUADRAN™ 365 S-Series faceplate shown with (right) and without (left) integral black light filters.
qdr-365_faceqdr-365bl_face
qdr-365s-quadran-365-with-fa-100
QUADRAN™ 365 S-Series lamps can be quickly mounted for in-line inspections using various Spectroline® accessories (FA-100 flexible arm shown).
qdr-365msa-quadran-365-kit

Also Available:

QUADRAN™ 365 MS-Series portable, battery-operated AC/DC lamp kits. Include QUADRAN™ 365 UV lamp, rechargeable NiMH battery pack, AC and DC cord sets, smart AC charger, UV-absorbing spectacles and soft carrying case.

Model
Nominal
steady-state
UV-A (365 nm)
intensity at
15 inches
(38 cm) ➀
Visible light
measurement
UV-A
coverage
area
(at minimum
2000 μW/cm2)
QDR-365SA
4,500  μW/cm2
maximum ➁
< 1 foot-candle
(11 lux)
5 in
(13 cm)
QDR-365SBLA
With integral black light filters
4,500  μW/cm2
maximum ➁
< 0.5 foot-candle
(5 lux)
4 in
(10 cm)





Light Source: 4 UV-A LEDs, 1 White Light LED
Lamp Style: Pistol Grip
Lamp Head (WxH): 6 x 5.5 in (15 x 14 cm)
Length: 10 in (25 cm)
Weight: 3 lb (1.36 kg)
White Light LED Intensity:
High setting: 300 foot-candles (3,229 lux)
Low setting: 10 foot-candles (108 lux)



Power Requirement

AC lamp
(QDR-365SA, QDR-365SBLA 120VAC* power cord supplied with lamp
AC/DC lamp
(QDR-365MSA, QDR-365MSBLA) 120VAC*/12VDC
Battery Pack:

Type
12V, NiMH (rechargeable)
Run time
4.5 hours (continuous)
Charge time
2 hours





* Also available in 120V, 230V, 240V and 100V versions

All UV-A intensity readings were taken with Spectroline® AccuMAX™ Series meter, and are factory set to the values shown

➁ To address aerospace industry concerns



127427 Standard, 8 foot (2.4 m) AC power cord
127431 Extra-long, 20 foot (6.1 m) AC power cord
127435 Power cord with 12V DC adapter for “M” series lamps
127922 Particulate filter assembly
127944 Standard faceplate
128094 Faceplate with integral black light filters
B-6
Bench mount
BP-30 Battery pack with 12V rechargeable NiMH battery
BR-150A Smart AC charger
CC-400 Soft carrying case
FA-100 Flexible arm
FP-550 Rubber bumper with Borofloat® glass
PS-200A Industrial power supply with cord set
PS-300A In-line power supply with cord set
W-6 Bench mount with pin
WM-100 Wall mounting bracket
UL-100 UV-A lens
UVS-30 UV-absorbing spectacles

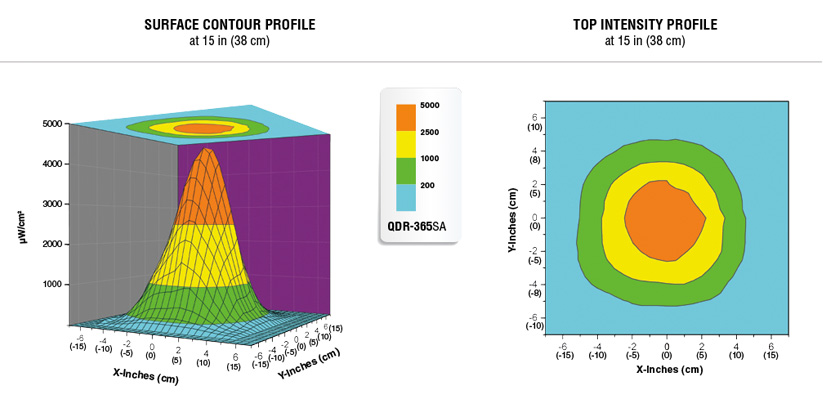

UV-A Beam Profile

standard-intensity-model-qdr-365sastandard-intensity-model-qdr-365sbla

Typical wavelength output profile of QUADRAN™ 365 S-Series lamps with and without black light filters.
As the wavelength of the QUADRAN™ 365 S-Series moves into the visible light range, the black light filters significantly reduce the output of the lamp at 400 nm.
 wavelength-standard-intensity-model
