Vorteile von Spectroline-Farbstoff
fully-miscible
Non-particulate, filtered down to 2 microns to assure
that any stray particles are captured.
that any stray particles are captured.
Detect Leaks At A Distance
Leak detection range of 25 feet
(8 m) or more.
(8 m) or more.
Co-Lösungsmittel frei
Non-particulate formula, doesn’t change the precise characteristics of the host fluid.
NSF certified
NSF certified to meet non-contact food-grade requirements.
Multi-Colored
Color-code to diagnose leaks across multiple systems.
Exclusive Formula
From the inventors & most trusted name in fluorescent leak detection.
EVERY DRIP COUNTS
A recent study by EXXON MOBILE U.S. found that the average manufacturing operation uses four times the quantity of hydraulic fluid than their equipment reservoirs actually hold.
Über 100 Millionen Gallonen (380 Millionen Liter) Hydraulikflüssigkeit könnten jedes Jahr allein in Nordamerika eingespart werden, wenn Leckagen beseitigt würden.
A hydraulic fluid leak of one drop per second translates into 420 U.S. gallons (1,600 L) lost per year. At $15 per gallon, the cost of this leakage would be approximately $6,300 per year.
The Average
Fluid System
Leaks...
1 Drop / second = 420 Gallons / year
$15 / Gallon = -$6,300 / year
18% - 24% OF COSTS
CAN BE REDUCED!
By creating a
preventative
maintenance plan
DILUTION
RATIOS
UV Dye: | Applications: | UV Dye: | Per Host Fluid: |
OIL-GLO ULTRA | Light-Colored Hydraulic Fluid | 1 oz (30 ml) | 8 Mädels (30 L) |
Dark/Intensely Blue Hydraulic & | 1 oz (30 ml) | 4 Mädels (15 L) | |
Compressor Oil | 1 oz (30 ml) | 4 Mädels (15 L) | |
Motoröl | 1 oz (30 ml) | 3 Mädels (11 L) | |
Getriebeöl | 1 oz (30 ml) | 1 Gallone (4 L) | |
Fuel (Gasoline or Diesel) | 1 oz (30 ml) | 12-18 gals (45-68 L) | |
WASSER-GLO ULTRA | Water and Water/Glycol-Based Fluid | 1 Pkt. (473 ml) | 1,000 Mädels (3,785 L) |
GAS-GLO ULTRA | Gasoline and Diesel Fuel | 1 oz (30 ml) | 10 Mädels (38 L) |
AERO-BRITE ULTRA | Flugzeugtreibstoff (statisch) | 2 oz (60 ml) | 100 Mädels (379 L) |
Flugzeugtreibstoff (während des Fluges) | 1.6 oz (47 ml) | 100 Mädels (379 L) | |
Hydraulische Flüssigkeit | 0.25 oz (7 ml) | 4 Mädels (15 L) | |
Motoröl | 0.25 oz (7 ml) | 1 Gallone (4 L) |

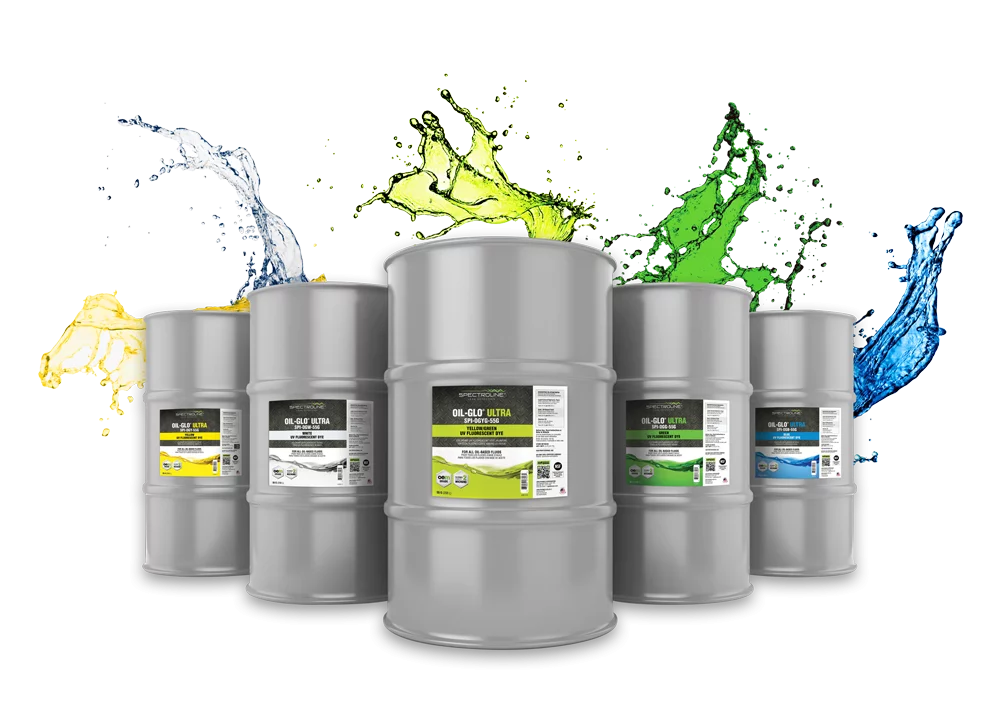

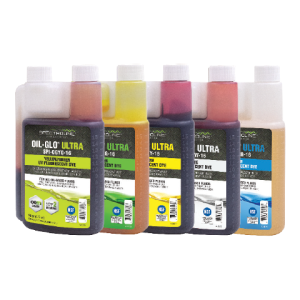

OIL-GLO® ULTRA
Für synthetische und petroleumbasierte Fluidsysteme.

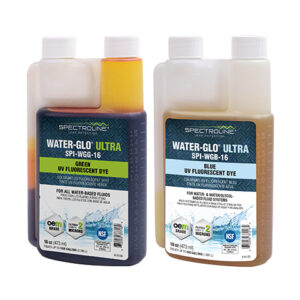

WASSER-GLO® ULTRA
Water/Glycol and Coolant Water-Soluble Systems.
GAS-GLO™ ULTRA
Für Benzin- und Dieselkraftstoffsysteme.
AERO-BRITE™ ULTRA
Für Flugzeugtreibstoffsysteme.
Lecksuch-Lampen
Teil Nummer | Bulb Type | Leak Detection Range | Runtime | Power | OIL-GLO® | WATER-GLO® | GAS-GLO™ | AERO-BRITE™ | |

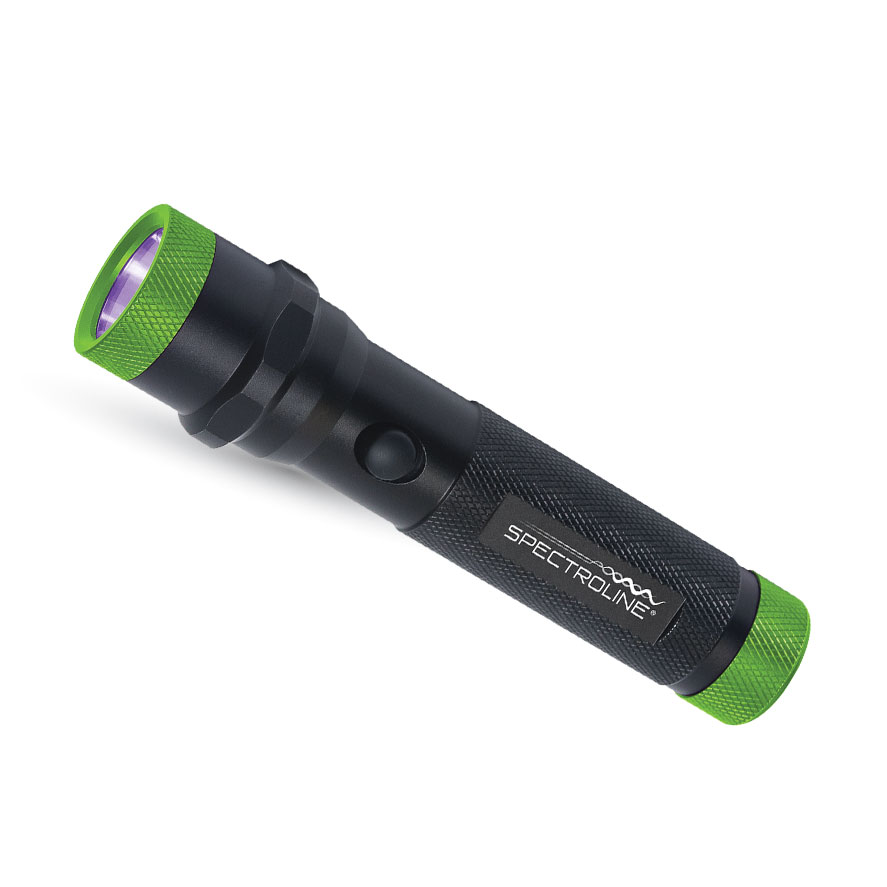

 | SPI-VL-CS | 400 nm | 25' (8m) | 5 hours | 3 “AAA” |  |  | - | |
 | SPI-LT | 365 nm | 20' (6m) | 4 hours | 3 “AAA” |  |  |  | |

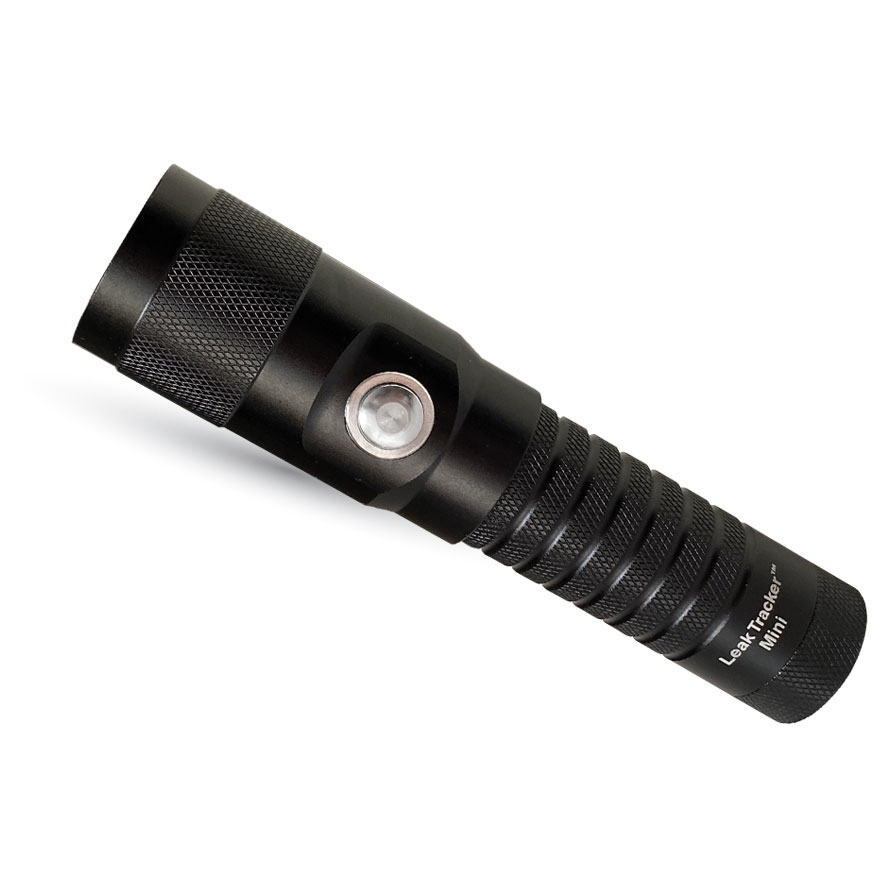

 | SPI-LTM | 365 nm | 25' (8m) | 6 hours | 3 “AAA” | | | | |

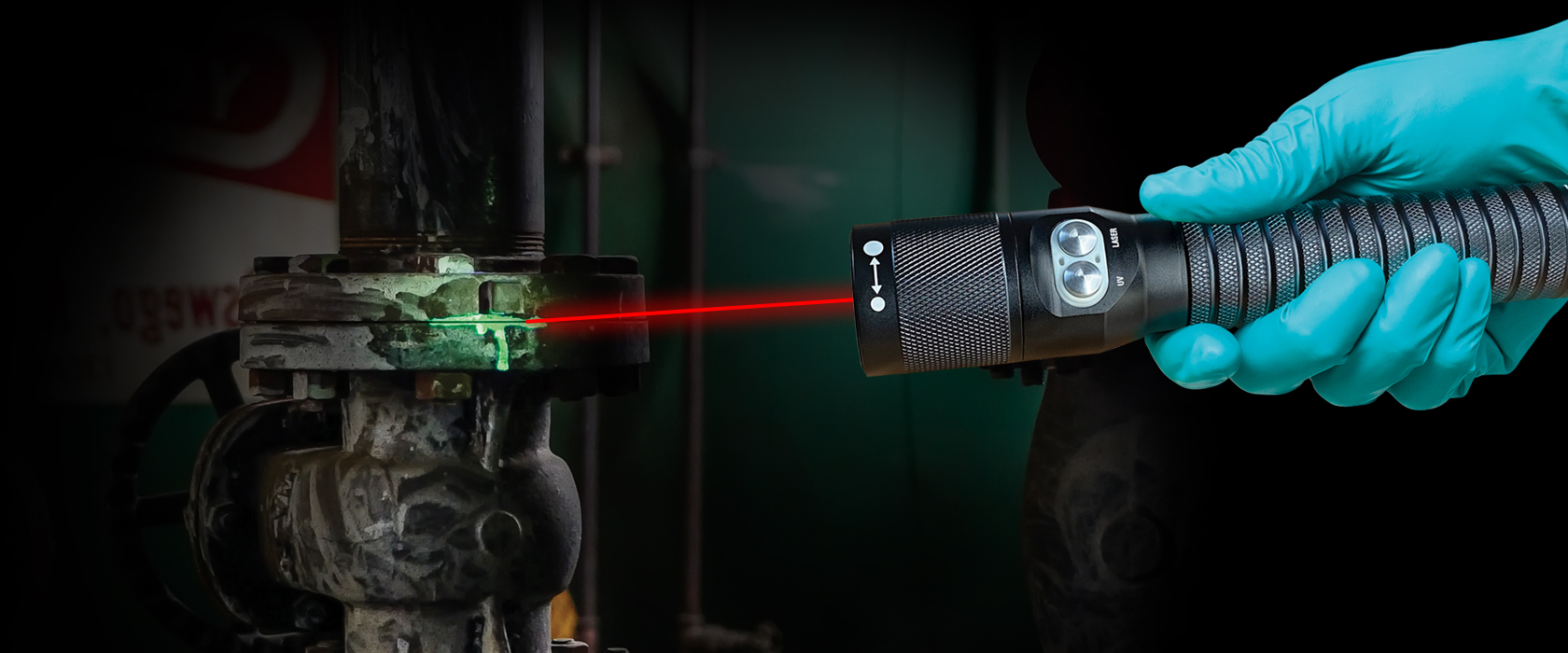

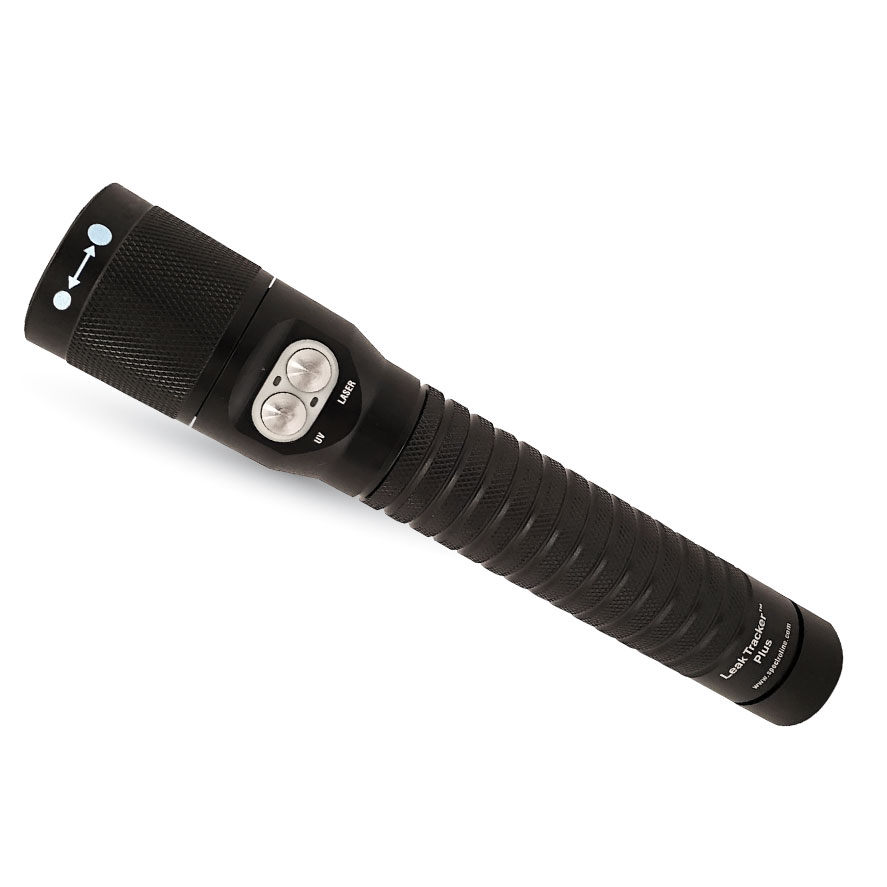

 | SPI-LTP | 365 nm | 25' (8m) *with Laser Pointer | 9 hours | 3 "C" | | | | |

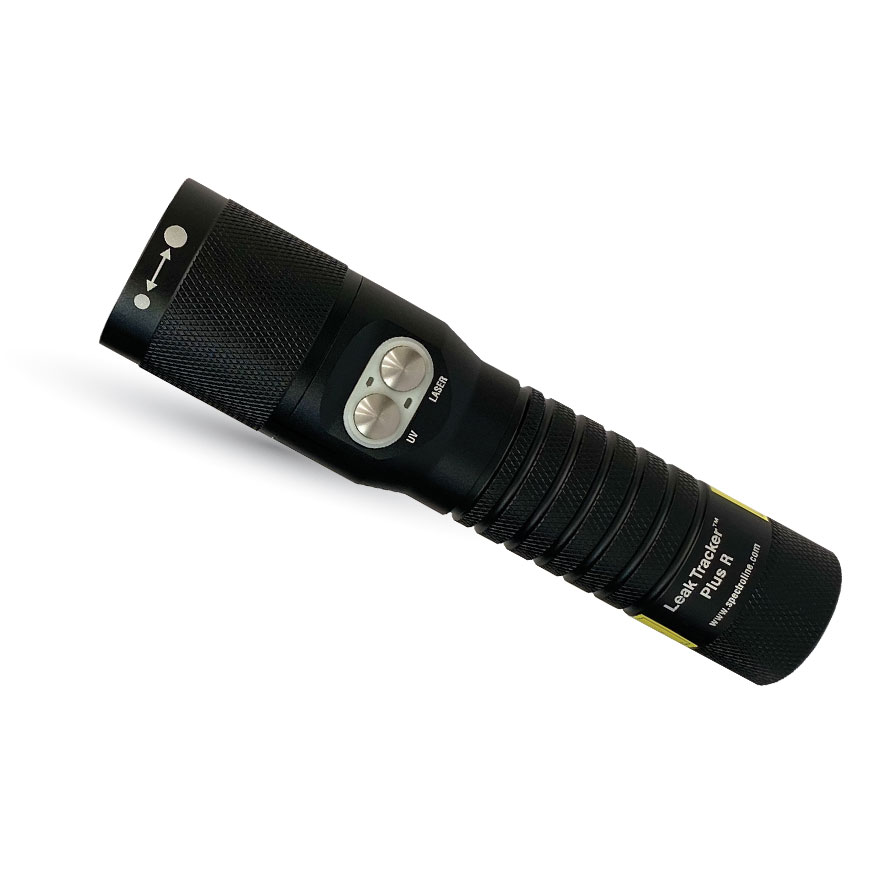

 | SPI-LTPR | 365 nm | 25' (8m) *with Laser Pointer | 9 hours | Li-Ion | | | | |
