X-Series for Specialty Inspection

Bench and Display Lamps

X-Series lamps are ideally suited for applications where high-intensity, wide-area UV coverage is required. Constructed of rugged metal with sturdy mounting brackets, these units are available in various combinations of long, medium and/or short wave UV. The complete line also offers lamps in a wide choice of various intensities, sizes and-wattage, including single or double UV tubes. A corrosion-resistant aluminum reflector optimizes UV irradiance while all short and medium wave models feature our unique LONGLIFE™ filter glass to ensure high initial UV intensity.

These versatile lamps are also a key component of our CL-150 UV photo documentation system. They offer easy wavelength interchangeability making this system ideal for numerous applications requiring a darkened environment.
Where to Buy

  • Choice of 15-watt, 30-watt and 40-watt models
  • Available in all UV wavelengths (LW, MW and SW) as well as germicidal lamps
  • Single- and double-tube combinations
  • Filtered UV-A and unfiltered UV tubes
  • Offered with or without filter assemblies
  • 15-watt models with anodized aluminum housing
  • 30- and 40-watt models with enameled sheet metal housing
  • Outfitted with sturdy metal brackets for easy overhead mounting

X-30G

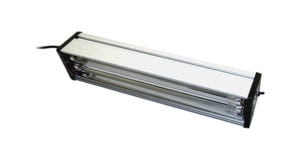

XX-15G

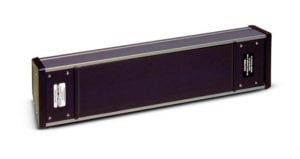

XX-15NF

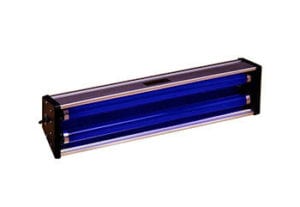

XX-15A

Long wave, LW (UV-A, 365nm)

  • Integrally filtered tube (BLB) or unfiltered tube (BL)
  • With or without filter

Model

Equipped with

Typical Peak UV Intensity (µW/cm²)
at 10″ (25cm)

X-15A

One 15-Watt BLB, BLE-1800B

800

X-30

One 30-Watt BLB, BLE-5000B

1,100

X-40

One 40-Watt BLB, BLE-7900B

1,400

XX-15A

Two 15-Watt BLB, BLE-1800B

1,100

XX-40

Two 40-Watt BLB, BLE-7900B

1,850

Medium wave, MW (UV-B, 312nm)

  • Unfiltered tube
  • With LONGLIFE filter

Model

Equipped with

Typical Peak UV Intensity (µW/cm²)
at 10″ (25cm)

X-15B

One 15-Watt MW, BLE-1T158

660

XX-15B

Two 15-Watt MW, BLE-1T158

1,150

Short wave, SW (UV-C, 254nm)

  • Unfiltered tube
  • With LONGLIFE filter

Model

Equipped with

Typical Peak UV Intensity (µW/cm²)
at 10″ (25cm)

X-15F

One 15-Watt SW, BLE-1T155

640

XX-15F

Two 15-Watt SW, BLE-1T155

1,100

  • Unfiltered long, medium and short wave tubes
  • With LONGLIFE filter

Long wave (UV-A, 365nm) / Short wave (UV-C, 254nm)

Model

Equipped with

Typical Peak UV Intensity (µW/cm²)
at 10″ (25cm)

XX-15NF

One 15-Watt BL, BLE-1T151
One 15-watt SW, BLE-1T155

UV-A: 550
UV-C: 490

Long wave (UV-A, 365nm) / Medium wave (UV-B, 312nm)

Model

Equipped with

Typical Peak UV Intensity (µW/cm²)
at 10″ (25cm)

XX-15NB

One 15-Watt BL, BLE-1T151
One 15-watt MW, BLE-1T158

UV-A: 550
UV-B: 590

Medium wave (UV-B, 312nm) / Short wave (UV-C, 254nm)

Model

Equipped with

Typical Peak UV Intensity (µW/cm²)
at 10″ (25cm)

XX-15BF

One 15-Watt MW, BLE-1T158
One 15-watt SW, BLE-1T155

UV-B: 590
UV-C: 490
