TRI-450B

TRITAN™ 450

(U.S. Patent 5,905,268; other patents pending)

The Perfect NDT Lamp When UV-A Emissions Are a Concern!

Feature three cool-running, ultra-high flux 450 nm blue light LEDs with a broad-beam configuration. This powerful lamp provides a wider coverage area than conventional inspection lamps, while its compact head design allows access into areas inaccessible to larger inspection lamps. Ideal for most non-destructive testing applications.

Where to Buy
  • Nominal steady-state intensity of 9,500 μW/cm2 at 15 inches (38 cm)
  • Large 5 inch (13 cm) diameter coverage area at 15 inches (38 cm), with a minimum intensity of 2,000 μW/cm2
  • Rubber bumper with patented thin-film dichroic lens filters out long-wave visible light
  • Electronic Intensity Stabilizer ensures consistent LED performance
  • Built-in fans keep LEDs cool to maintain optimum light output during extended use
  • Instant-on operation. Lamp reaches full intensity immediately!
  • Rugged, ergonomic, angled lamp body provides safe, fatigue-free handling
  • Choice of standard 8 foot (2.4 m) or extra-long 20 foot (6.1 m) heavy-duty power cord with AC plug and rubber boot. Also available: Optional in-line power supply or industrial power supply with cord sets (sold seperately). All power supplies in 120V, 230V, 240V or 100V models.
  • Includes yellow contrasting spectacles and soft carrying case

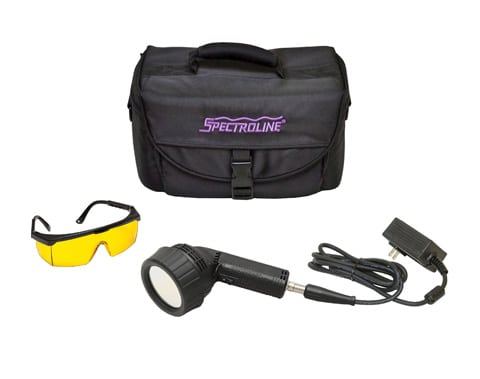

tri-450b-hand-held-with-new-cord2

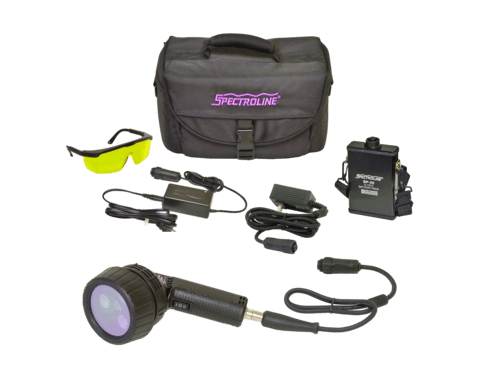

tri-450mb-tritan-450-kit-contents

Also available: TRITAN™ 450MB portable, battery-operated AC/DC lamp kit. Kit includes TRITAN 450M blue light LED lamp, rechargeable NiMH battery pack, power supply adapter with AC and DC cord sets, smart AC charger, yellow contrasting spectacles and soft, lightweight carrying case. AC charger available in 120V, 230V, 240V or 100V versions.



UV-A Beam Profile

tritan450b-blue-beam-profile

Product Numbers: TRI-450B, TRI-450MB
Lamp Head Diameter: 5 in (13 cm)
Length: 8.0 in (20.3 cm)
Weight (w/battery): 1 lb (454 g)
Power Requirements: TRI-450B: 120VAC*
TRI-450MB: 120VAC*/12VDC
Battery Pack (For TRI-450MB)
  • Type:
12V, rechargeable NiMH
  • Run time:
3.5 hours (continuous)
  • Charge time:
2 hours
  • Weight:
1 lb (454 g)


*Also available in 230V, 240V and 100V versions

127933      Particulate filter assembly
127955      Standard faceplate
128196      Faceplate with integral black light filters
129141      Standard, 8 foot (2.4 m) AC power cord
129145      Extra-long, 20 foot (6.1 m) AC power cord
129162      3.5 foot (1.1 m) DC power cord for “M” series lamps
BP-30      Battery pack with 12V rechargeable NiMH battery
BR-150A      Smart AC charger
CC-370A      Soft carrying case
FP-365      Rubber bumper with Borofloat® glass
PS-200A      Industrial power supply. Primary cord: 8 feet (2.4 m); secondary cord: 20 feet (6.1 m)
PS-250A      AC/DC power supply adapter for “M” series lamps
PS-300A      In-line power supply. Primary cord: 8 feet (2.4 m); secondary cord: 8 feet (2.4 m)
UL-100      UV-A lens
UVS-30      30 UV-absorbing spectacles
