OPK-300N

Multi-Lite® LED

A New Powerful, Versatile, Multiple Wavelength, NDT Inspection Light!

The OPK-300N Multi-Lite® Kit features three Qwik-Connect™ interchangeable LED lamp heads that connect to a rugged, black-anodized flashlight body. It provides specific illumination in UV-A and blue light, and is ideal for both pre-screening of fluorescent particles in ambient light conditions and full- fledged NDT inspections utilizing magnetic particles or fluorescent penetrants. A convenient white light LED provides general illumination of dark work areas.

Where to Buy
  • Super-powerful LED optical output with ultra-highintensity 365 nm UV-A and 450 nm blue light performance
  • Provides nominal steady-state intensity of 18,000 µW/cm2 (UV LED) or 7,000 µW/cm2 (blue light LED) at 15 inches (38 cm)
  • Blue light LED with patented thin-film dichroic lens filters out long-wave visible light
  • Electronic Intensity Stabilizer ensures consistent performance. Beam strength will not weaken between charges!
  • Instant-on operation. Lamp reaches full intensity immediately!
  • Lightweight, cordless, ergonomic design eliminates fatigue
  • Meets ASTM UV-A intensity specifications for FPI and MPI
  • Powered by a rechargeable NiMH battery. Provides 90 minutes of continuous inspection between charges (smart AC and DC chargers included). AC charger available in 120V, 230V, 240V and 100V versions.

opk-300n_kit

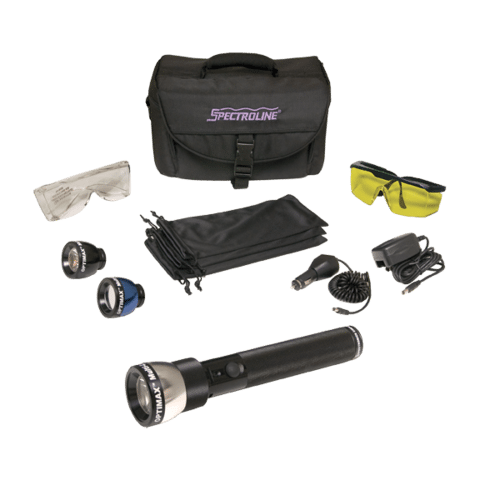

The OPK-300N Multi-Lite™ Inspection Kit comes complete with three storage pouches for the LED lamp heads, smart AC and DC battery chargers, UV-absorbing spectacles, yellow contrasting spectacles and a padded carrying case.


opk-300n_hand-held

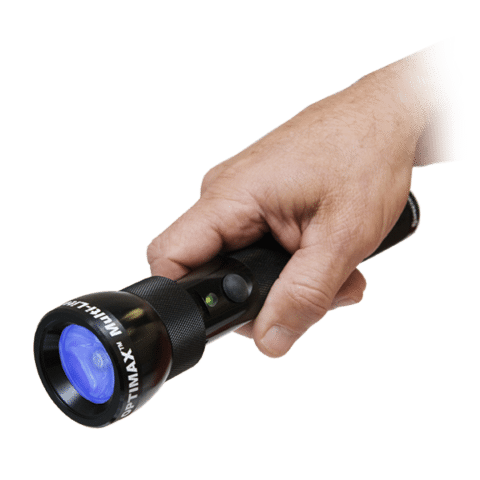

The OPK-300N features a compact, lightweight, corrosion-resistant aluminum flashlight body and three unique Qwik-Connect™ interchangeable LED lamp heads (UV-A, blue and white light). It is specially designed to provide the NDT professional with outstanding specific illumination for maximum versatility.

Product Number

OPK-300N

Lamp Style

Cordless flashlight body with three interchangeable LED lamp heads

Length

9.0 inch (22.9 cm)

Weight

15.3 oz (434 g)

Power Requirement

3.6V, 2 AH NiMH internal battery stick (rechargeable)

Run Time

90 minutes (continuous)

Charge Time

5 hours
Spectacles UVS-30 UV-absorbing, clear
UVS-40 yellow contrasting

UV-A Beam Profile



OPK-300N Beam profiles
