MiniMAX™ Series

Battery-Operated UV Lamps  (U.S. Patent No. 7,344,272)

Powerful, Portable, Practical!

Revolutionary units are three times brighter than competitive UV inspection lamps!

Where to Buy
  • Superior design − Unique “shadow box” design blocks room light and makes materials glow brighter.
  • Affordable − Competitively priced to offer the best value for your money.
  • Versatile − Ideal for countless applications. The only battery-operated UV lamps with an AC adapter.
  • Portable − Compact and lightweight units are easily carried for on-site or field inspections. Provides 4 to 6 hours of use. Powered by four 1.5-volt AA alkaline batteries (not included). Includes AC adapter, nylon carrying strap and nylon travel pouch.
  • Convenient − All units feature sliding light shield for trouble-free tube changing. Slide-out compartment allows for quick, effortless battery replacement.

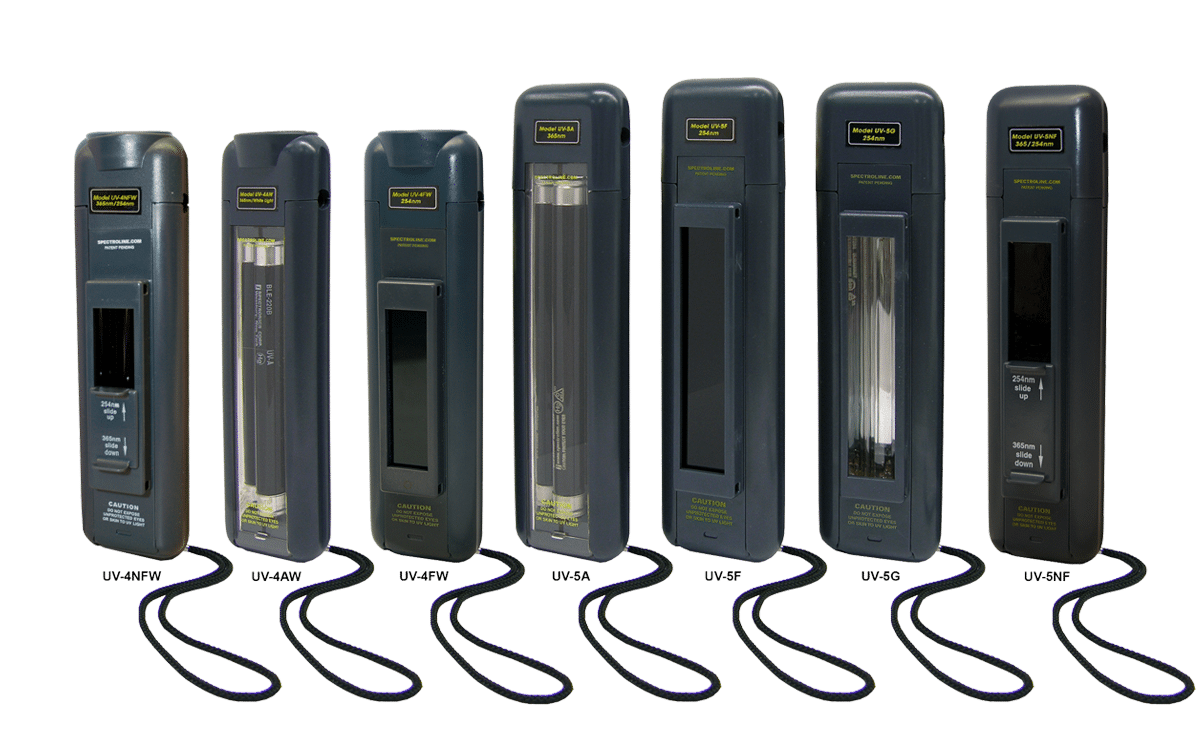

Minimax Series Lamp

Optional Accessory

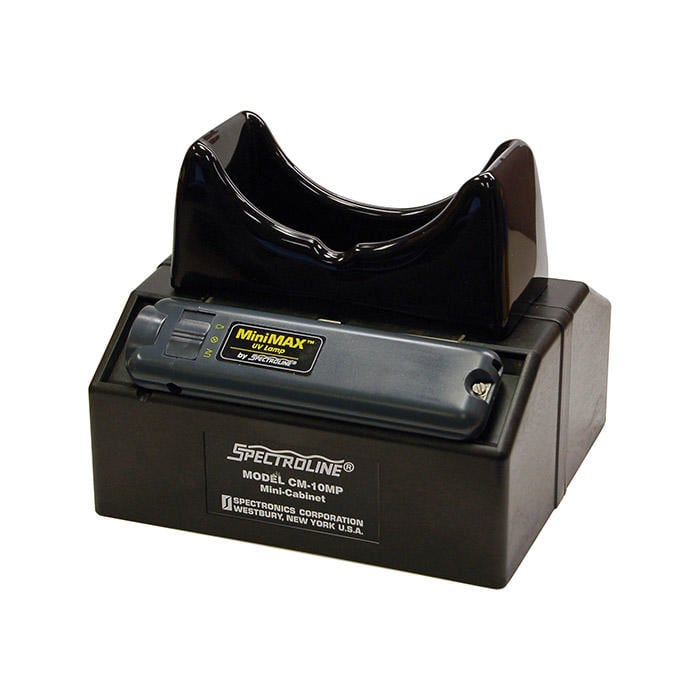

CM-10MP Mini UV Viewing Cabinet

When coupled with one of our MiniMAX™ Series lamps, this space-saving mini-cabinet makes the perfect, portable UV viewing workstation. It features a flexible, contoured eyepiece, molded plastic construction and a built-in UV-absorbing window for safe sample viewing during UV illumination.
126545 AC Adapter, 100-240V, 50/60 Hz, 6V DC, 2A
126675 Domestic/Japanese Plug, 100/120V, 50/60 Hz
126676 European Plug, 230V, 50/60 Hz
126677 UK Plug, 230V 50/60 Hz
126678 Australian Plug, 240V, 50/60 Hz
123965 Bulb, White Light, 4 Watt
BLE-220B Tube, 365nm, 4 Watt BLB
BLE-2537S Tube, 254nm, 4 Watt
BLE-3625/HC Tube, 365nm/254nm, 4 Watt (Multi-Band)
BLE-5T254 Tube, 254nm, 5 Watt
BLE-5T3625 Tube, 365nm/254nm, 5 Watt (Multi-Band)
BLE-5T365B Tube, 365nm, 5 Watt BLB
Part Number Wavelength(s) Number of Tubes/Wattage
UV-4AW
365 nm/
white light
(1) 365nm 4 Watt BLB Tube and
(1) White Light Bulb
UV-4FW
254 nm/
white light
(1) 254nm 4 Watt Tube and
(1) White Light Bulb
UV-4NFW
254 nm/
365 nm/
white light
(1) 365nm/254nm 4 Watt Multi-Band Tube and
(1) White Light Bulb
UV-5A
365 nm
(1) 365nm 5 Watt BLB Tube
UV-5F 254 nm (1) 254nm 5 Watt Tube
UV-5G
254 nm
(1) 254nm 5 Watt Germicidal Tube
UV-5NF
365 nm
254 nm
(1) 365nm/254nm 5 Watt Multi-Band Tube
