- User Friendly − Just add a small amount of M-GLO™ fluorescent dye to the chemical storage tank, and circulate it thoroughly to mix. When the tank and piping are scanned with a high-intensity long-wave UV (365 nm) inspection lamp, all leak sites will glow bright yellow.
- Versatile − Pinpoints the exact source of even the smallest, most elusive leaks!
- Cost Effective − Highly concentrated formulation. One gallon (3.8 L) of dye treats 6,400 gallons (24,226 L) of crude MCHM.
- Highest Quality – Dye is filtered down to 2 microns
- Several Sizes – Choice of 1-gallon (3.8 L), 5-gallon (18.9 L), 55-gallon (208.2 L) or 264-gallon (1,000 L) containers
In January 2014, approximately 10,000 gallons of crude MCHM chemical leaked from a holding tank at a storage facility into the ground near the Elk River in West Virginia, contaminating both the river and the public water supply downstream from the plant. A “do-not-use” advisory was issued leaving at least 300,000 residents in nine counties without access to potable water for up to 10 days.
While the legal, financial, environmental and health-related impact has yet to be fully calculated in the aftermath of this devastating chemical spill, the initial clean-up costs to the business are known to have exceeded $800,000 in the first week alone. Fines and litigation costs have since forced the company to declare bankruptcy.
The renewed demand for stricter safety and environmental regulations in the wake this incident will require chemical storage facilities to implement more comprehensive leak detection and preventive maintenance programs. That’s why we developed M-GLO fluorescent leak detection dye!
When added to MCHM chemical storage tanks, M-GLO fluorescent dye provides fast and easy detection of even the smallest leaks. In the event of a spill, M-GLO dye can also help trace its path and limit the extent of contamination into soil and water.
When viewed with the naked eye, the clear, colorless appearance of crude MCHM is virtually undetectable in soil or water. After adding a small amount of M-GLO fluorescent dye, the chemical will glow a bright yellow color under high-intensity long-wave UV (365 nm) light, making leaks and spills much easier to trace!
OPTIMAX™ 365 (P/N OPX-365)
UV LED inspection flashlight kit
Comes complete with AC and DC cord sets, rechargeable NiMH battery, belt holster, UV absorbing glasses and a rugged carrying case.

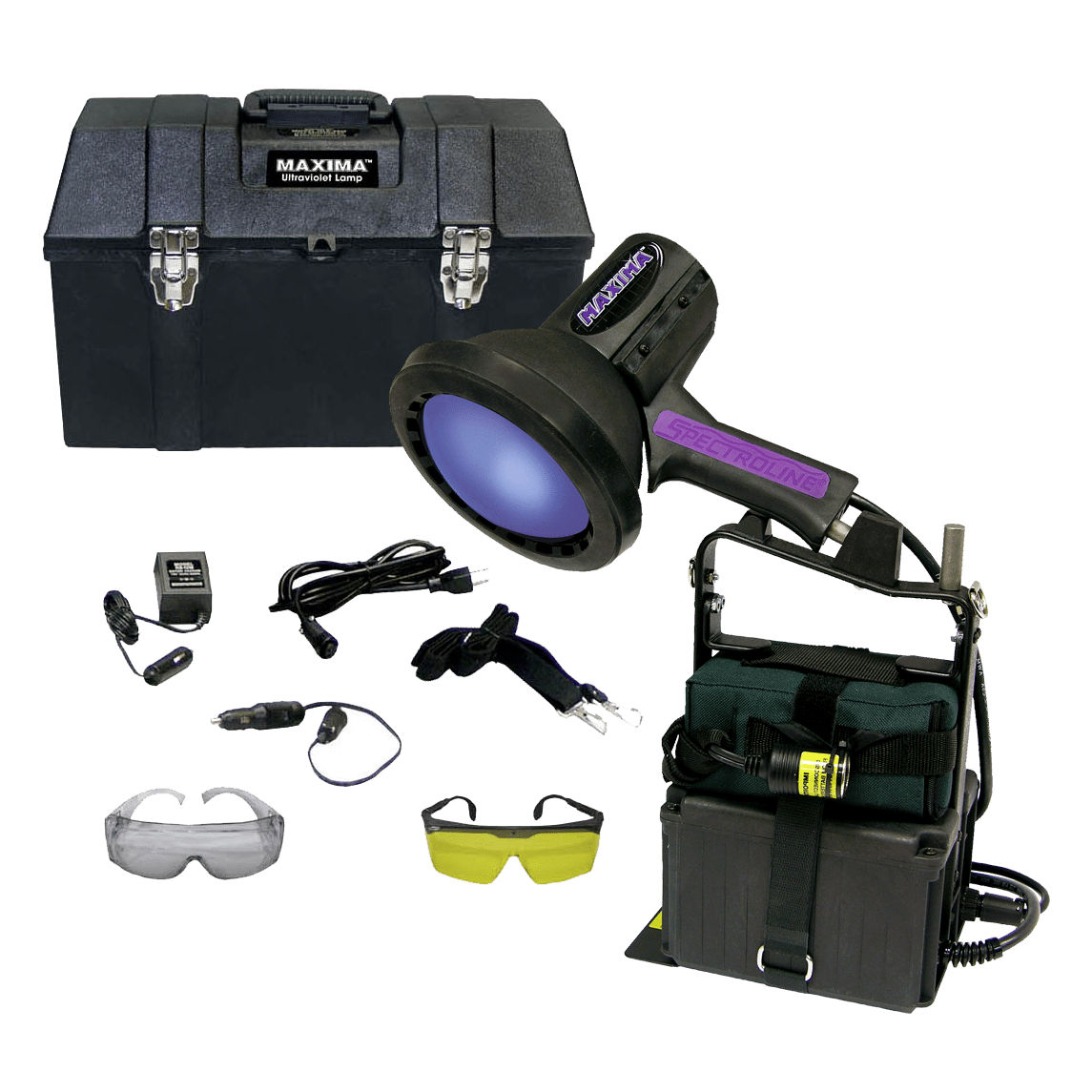

MAXIMA™ (P/N ML-3500MS)
Battery-operated UV MDL inspection lamp kit
Comes complete with battery pack, AC and DC cord sets, UV-absorbing and fluorescence-enhancing glasses and large rugged carrying case.
|PRODUCT NUMBER||CONTAINER SIZE||SUGGESTED
|MGOY-1G||1 gal (3.8 L)||1 gal (3.8 L) of dye per 6,400 gals (24,226 L) of crude MCHM|
|MGOY-5G||5 gal (18.9 L)|
|MGOY-55G||55 gal (208.2 L)|
|MGOY-1T||264 gal (1,000 L)|
NOTE: The dilution ratio of M-GLO fluorescent dye to the host fluid shown in the chart is only a guideline. The ratio can be increased or decreased depending on the fluorescent response required and the ambient lighting conditions. A simple way to check for proper fluorescence is to remove a small amount of host fluid from the system and add the suggested amount of dye to it. Then shine the UV inspection lamp on this sample mixture and check for a bright fluorescent response.
M-GLO™ dye fluoresces bright yellow under long-wave UV (365 nm) light
